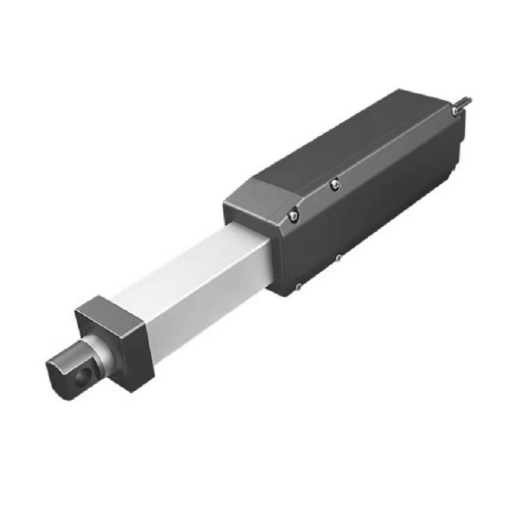

MICRO LINEAR ACTUATOR

Specifications:

Input voltage: 12VDC

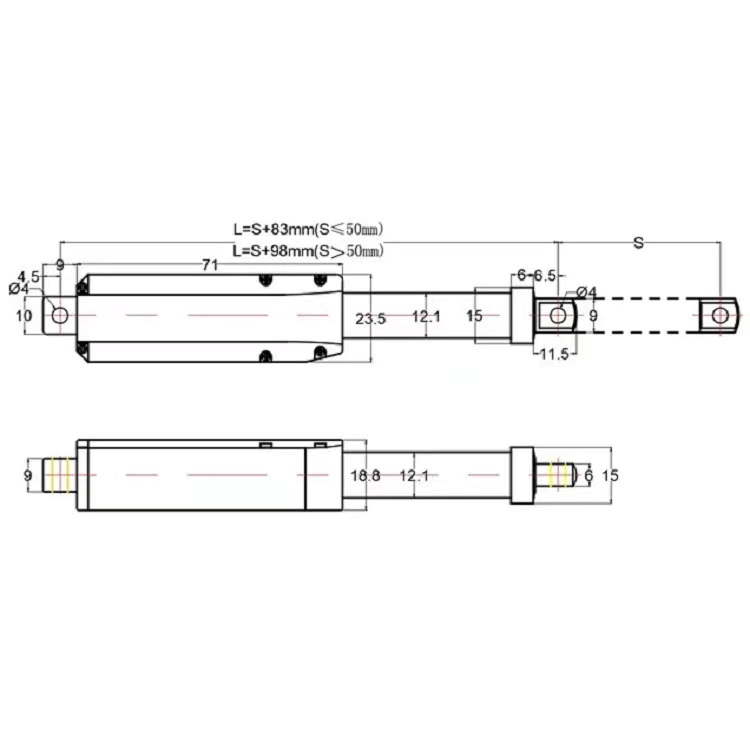

Stroke length:25-150MM

Max. Load:60N

Max.speed:15mm/s

Duty cycle:10%, work 2 minutes need to rest 18minutes.

Operational temperature: -26℃ to 65℃

Build-in integral limit switch, not adjustable after leaving factory.

Low noise design, dB≦50

IP65
